app引导页(背景图片切换加各个页面动画效果)

前言:不知不觉中又加班到了10点半,整个启动页面做了一天多的时间,一共有三个页面,每个页面都有动画效果,动画效果调试起来麻烦,既要跟ios统一,又要匹配各种不同的手机,然后产品经理还有可能在中途改需求,程序员各种苦逼有木有,在这个过程中也学到了蛮多东西的,所以写一篇博客跟大家分享一下.

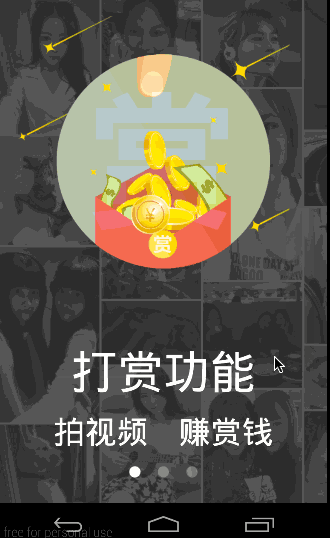

先看效果图:





1.显示三个页面的Activity  用view pager去加载三个fragment实现,控制点点点的切换,监听view pager的切换,控制fragment动画的开始跟结束,重写了view pager,实现了背景图片的移动效果.



[java] view plaincopy

  1. /**
  2.  * 主Activity
  3.  * @author ansen
  4.  * @create time 2015-08-07
  5.  */
  6. public class KaKaLauncherActivity extends FragmentActivity {
  7.     private GuideViewPager vPager;
  8.     private List<LauncherBaseFragment> list = new ArrayList<LauncherBaseFragment>();
  9.     private BaseFragmentAdapter adapter;
  10.
  11.     private ImageView[] tips;
  12.     private int currentSelect;
  13.
  14.     @Override
  15.     protected void onCreate(Bundle savedInstanceState) {
  16.         super.onCreate(savedInstanceState);
  17.         setContentView(R.layout.activity_luancher_main);
  18.
  19.         //初始化点点点控件
  20.         ViewGroup group = (ViewGroup)findViewById(R.id.viewGroup);
  21.         tips = new ImageView[3];
  22.         for (int i = 0; i < tips.length; i++) {
  23.             ImageView imageView = new ImageView(this);
  24.             imageView.setLayoutParams(new LayoutParams(10, 10));
  25.             if (i == 0) {
  26.                 imageView.setBackgroundResource(R.drawable.page_indicator_focused);
  27.             } else {
  28.                 imageView.setBackgroundResource(R.drawable.page_indicator_unfocused);
  29.             }
  30.             tips[i]=imageView;
  31.
  32.             LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(new ViewGroup.LayoutParams(LayoutParams.WRAP_CONTENT,LayoutParams.WRAP_CONTENT));
  33.             layoutParams.leftMargin = 20;//设置点点点view的左边距
  34.             layoutParams.rightMargin = 20;//设置点点点view的右边距
  35.             group.addView(imageView,layoutParams);
  36.         }
  37.
  38.         //获取自定义viewpager 然后设置背景图片
  39.         vPager = (GuideViewPager) findViewById(R.id.viewpager_launcher);
  40.         vPager.setBackGroud(BitmapFactory.decodeResource(getResources(),R.drawable.bg_kaka_launcher));
  41.
  42.         /**
  43.          * 初始化三个fragment  并且添加到list中
  44.          */
  45.         RewardLauncherFragment rewardFragment = new RewardLauncherFragment();
  46.         PrivateMessageLauncherFragment privateFragment = new PrivateMessageLauncherFragment();
  47.         StereoscopicLauncherFragment stereoscopicFragment = new StereoscopicLauncherFragment();
  48.         list.add(rewardFragment);
  49.         list.add(privateFragment);
  50.         list.add(stereoscopicFragment);
  51.
  52.         adapter = new BaseFragmentAdapter(getSupportFragmentManager(),list);
  53.         vPager.setAdapter(adapter);
  54.         vPager.setOffscreenPageLimit(2);
  55.         vPager.setCurrentItem(0);
  56.         vPager.setOnPageChangeListener(changeListener);
  57.     }
  58.
  59.     /**
  60.      * 监听viewpager的移动
  61.      */
  62.     OnPageChangeListener changeListener=new OnPageChangeListener() {
  63.         @Override
  64.         public void onPageSelected(int index) {
  65.             setImageBackground(index);//改变点点点的切换效果
  66.             LauncherBaseFragment fragment=list.get(index);
  67.
  68.             list.get(currentSelect).stopAnimation();//停止前一个页面的动画
  69.             fragment.startAnimation();//开启当前页面的动画
  70.
  71.             currentSelect=index;
  72.         }
  73.
  74.         @Override
  75.         public void onPageScrolled(int arg0, float arg1, int arg2) {}
  76.         @Override
  77.         public void onPageScrollStateChanged(int arg0) {}
  78.     };
  79.
  80.     /**
  81.      * 改变点点点的切换效果
  82.      * @param selectItems
  83.      */
  84.     private void setImageBackground(int selectItems) {
  85.         for (int i = 0; i < tips.length; i++) {
  86.             if (i == selectItems) {
  87.                 tips[i].setBackgroundResource(R.drawable.page_indicator_focused);
  88.             } else {
  89.                 tips[i].setBackgroundResource(R.drawable.page_indicator_unfocused);
  90.             }
  91.         }
  92.     }
  93. }




2.重写viewpager   在dispatchDraw方法中控制显示的背景图片区域,



[java] view plaincopy

  1. /**
  2.  * 重写ViewPager  主要做一个切换背景的功能
  3.  * @author ansen
  4.  * @create time 2015-08-07
  5.  */
  6. public class GuideViewPager extends ViewPager {
  7.     private Bitmap bg;
  8.     private Paint b = new Paint(1);
  9.
  10.     public GuideViewPager(Context context) {
  11.         super(context);
  12.     }
  13.
  14.     public GuideViewPager(Context context, AttributeSet attrs) {
  15.         super(context, attrs);
  16.     }
  17.
  18.     @Override
  19.     protected void dispatchDraw(Canvas canvas) {
  20.         if (this.bg != null) {
  21.             int width = this.bg.getWidth();
  22.             int height = this.bg.getHeight();
  23.             int count = getAdapter().getCount();
  24.             int x = getScrollX();
  25.             // 子View中背景图片需要显示的宽度,放大背景图或缩小背景图。
  26.             int n = height * getWidth() / getHeight();
  27.
  28.             /**
  29.              * (width - n) / (count - 1)表示除去显示第一个ViewPager页面用去的背景宽度,剩余的ViewPager需要显示的背景图片的宽度。
  30.              * getWidth()等于ViewPager一个页面的宽度,即手机屏幕宽度。在该计算中可以理解为滑动一个ViewPager页面需要滑动的像素值。
  31.              * ((width - n) / (count - 1)) /getWidth()也就表示ViewPager滑动一个像素时,背景图片滑动的宽度。
  32.              * x * ((width - n) / (count - 1)) /  getWidth()也就表示ViewPager滑动x个像素时,背景图片滑动的宽度。
  33.              * 背景图片滑动的宽度的宽度可以理解为背景图片滑动到达的位置。
  34.              */
  35.             int w = x * ((width - n) / (count - 1)) / getWidth();
  36.             canvas.drawBitmap(this.bg, new Rect(w, 0, n + w, height), new Rect( x, 0, x + getWidth(), getHeight()), this.b);
  37.         }
  38.         super.dispatchDraw(canvas);
  39.     }
  40.
  41.     public void setBackGroud(Bitmap paramBitmap) {
  42.         this.bg = paramBitmap;
  43.         this.b.setFilterBitmap(true);
  44.     }
  45. }






3.主体布局文件  上面放一个自定义的viewpager  下面放一个显示点点的RelativeLayout



[html] view plaincopy

  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent" >
  5.
  6.     <com.example.view.GuideViewPager
  7.         android:id="@+id/viewpager_launcher"
  8.         android:layout_width="match_parent"
  9.         android:layout_height="match_parent" />
  10.
  11.     <RelativeLayout
  12.         android:layout_width="fill_parent"
  13.         android:layout_height="wrap_content"
  14.         android:orientation="vertical" >
  15.
  16.         <LinearLayout
  17.             android:id="@+id/viewGroup"
  18.             android:layout_width="fill_parent"
  19.             android:layout_height="wrap_content"
  20.             android:layout_alignParentBottom="true"
  21.             android:layout_marginBottom="30dp"
  22.             android:gravity="center_horizontal"
  23.             android:orientation="horizontal" />
  24.     </RelativeLayout>
  25.
  26. </RelativeLayout>



4.ViewPager适配器



[java] view plaincopy

  1. /**
  2.  * Viewpager适配器
  3.  * @author apple
  4.  *
  5.  */
  6. public class BaseFragmentAdapter extends FragmentStatePagerAdapter {
  7.     private List<LauncherBaseFragment>list;
  8.     public BaseFragmentAdapter(FragmentManager fm, List<LauncherBaseFragment> list) {
  9.         super(fm);
  10.         this.list = list;
  11.     }
  12.
  13.     public BaseFragmentAdapter(FragmentManager fm) {
  14.         super(fm);
  15.     }
  16.
  17.     @Override
  18.     public Fragment getItem(int arg0) {
  19.         return list.get(arg0);
  20.     }
  21.
  22.     @Override
  23.     public int getCount() {
  24.         return list.size();
  25.   &nbsnbsp; }
  26. }





5.Fragment抽象类 有两个抽象方法,开启动画跟停止动画  所有的Fragment都继承这个类  Viewpager切换的时候可以更好的控制每个Fragment开启动画,结束动画



[java] view plaincopy

  1. /**
  2.  * Fragment抽象类
  3.  * @author ansen
  4.  *
  5.  */
  6. public abstract class LauncherBaseFragment extends Fragment{
  7.     public abstract void  startAnimation();
  8.     public abstract void  stopAnimation();
  9. }





6.打赏页Fragment  三个动画效果  硬币向下移动动画+打赏图片缩放动画+改变打赏图片透明度然后隐藏图片



[java] view plaincopy

  1. /**
  2.  * 打赏页面
  3.  * @author ansen
  4.  * @create time 2015-08-07
  5.  */
  6. public class RewardLauncherFragment extends LauncherBaseFragment{
  7.     private ImageView ivReward;
  8.     private ImageView ivGold;
  9.
  10.     private Bitmap goldBitmap;
  11.     private boolean started;//是否开启动画(ViewPage滑动时候给这个变量赋值)
  12.
  13.     @Override
  14.     public View onCreateView(LayoutInflater inflater, ViewGroup container,Bundle savedInstanceState) {
  15.         View rooView=inflater.inflate(R.layout.fragment_reward_launcher, null);
  16.         ivGold=(ImageView) rooView.findViewById(R.id.iv_gold);
  17.         ivReward=(ImageView) rooView.findViewById(R.id.iv_reward);
  18.
  19.         //获取硬币的高度
  20.         goldBitmap=BitmapFactory.decodeResource(getActivity().getResources(),R.drawable.icon_gold);
  21.         startAnimation();
  22.         return rooView;
  23.     }
  24.
  25.     public void startAnimation(){
  26.         started=true;
  27.
  28.         //向下移动动画 硬币的高度*2+80
  29.         TranslateAnimation translateAnimation=new TranslateAnimation(0,0,0,goldBitmap.getHeight()*2+80);
  30.         translateAnimation.setDuration(500);
  31.         translateAnimation.setFillAfter(true);
  32.
  33.         ivGold.startAnimation(translateAnimation);
  34.         translateAnimation.setAnimationListener(new AnimationListener() {
  35.             @Override
  36.             public void onAnimationStart(Animation animation) {}
  37.             @Override
  38.             public void onAnimationEnd(Animation animation){
  39.                 if(started){
  40.                     ivReward.setVisibility(View.VISIBLE);
  41.                     //硬币移动动画结束开启缩放动画
  42.                     Animation anim=AnimationUtils.loadAnimation(getActivity(),R.anim.reward_launcher);
  43.                     ivReward.startAnimation(anim);
  44.                     anim.setAnimationListener(new AnimationListener(){
  45.                         @Override
  46.                         public void onAnimationStart(Animation animation) {}
  47.                         @Override
  48.                         public void onAnimationRepeat(Animation animation) {}
  49.                         @Override
  50.                         public void onAnimationEnd(Animation animation) {
  51.                                 //缩放动画结束 开启改变透明度动画
  52.                                 AlphaAnimation alphaAnimation=new AlphaAnimation(1,0);
  53.                                 alphaAnimation.setDuration(1000);
  54.                                 ivReward.startAnimation(alphaAnimation);
  55.                                 alphaAnimation.setAnimationListener(new AnimationListener() {
  56.                                     @Override
  57.                                     public void onAnimationStart(Animation animation) {}
  58.                                     @Override
  59.                                     public void onAnimationRepeat(Animation animation) {}
  60.                                     @Override
  61.                                     public void onAnimationEnd(Animation animation) {
  62.                                         //透明度动画结束隐藏图片
  63.                                         ivReward.setVisibility(View.GONE);
  64.                                     }
  65.                             });
  66.                         }
  67.                     });
  68.                 }
  69.             }
  70.             @Override
  71.             public void onAnimationRepeat(Animation animation) {}
  72.         });
  73.     }
  74.
  75.     @Override
  76.     public void stopAnimation(){
  77.         started=false;//结束动画时标示符设置为false
  78.         ivGold.clearAnimation();//清空view上的动画
  79.     }
  80. }





7.私信页面   四个动画效果   并且四个动画都相同,其实只要我们实现了一个,其他的基本都很容易了.   依次实现四个图片的放大然后还原



[java] view plaincopy

  1. /**
  2.  * 私信
  3.  * @author ansen
  4.  */
  5. public class PrivateMessageLauncherFragment extends LauncherBaseFragment{
  6.     private ImageView ivLikeVideo,ivThinkReward,ivThisWeek,ivWatchMovie;
  7.
  8.     private Animation likeAnimation,thinkAnimation,watchAnimation,thisWeekAnimation;
  9.
  10.     private boolean started;//是否开启动画
  11.
  12.     @Override
  13.     public View onCreateView(LayoutInflater inflater, ViewGroup container,Bundle savedInstanceState) {
  14.         View rooView=inflater.inflate(R.layout.fragment_private_message_launcher, null);
  15.
  16.         ivLikeVideo=(ImageView) rooView.findViewById(R.id.iv_private_message_like_video);
  17.         ivThinkReward=(ImageView) rooView.findViewById(R.id.iv_private_message_think_reward);
  18.         ivWatchMovie=(ImageView) rooView.findViewById(R.id.iv_private_message_watch_movie);
  19.         ivThisWeek=(ImageView) rooView.findViewById(R.id.private_message_this_week);
  20.         return rooView;
  21.     }
  22.
  23.     public void stopAnimation(){
  24.         //动画开启标示符设置成false
  25.         started=false;
  26.         /**
  27.          * 清空所有控件上的动画
  28.          */
  29.         ivLikeVideo.clearAnimation();
  30.         ivThinkReward.clearAnimation();
  31.         ivWatchMovie.clearAnimation();
  32.         ivThisWeek.clearAnimation();
  33.     }
  34.
  35.
  36.     public void startAnimation(){
  37.         started=true;
  38.
  39.         /**
  40.          * 每次开启动画前先隐藏控件
  41.          */
  42.         ivLikeVideo.setVisibility(View.GONE);
  43.         ivThinkReward.setVisibility(View.GONE);
  44.         ivWatchMovie.setVisibility(View.GONE);
  45.         ivThisWeek.setVisibility(View.GONE);
  46.
  47.         new Handler().postDelayed(new Runnable() {//延时0.5秒之后开启喜欢视频动画
  48.             @Override
  49.             public void run(){
  50.                 if(started)
  51.                     likeVideoAnimation();
  52.             }
  53.         },500);
  54.     }
  55.
  56.     /**
  57.      * 好喜欢你的视频
  58.      */
  59.     private void likeVideoAnimation(){
  60.         ivLikeVideo.setVisibility(View.VISIBLE);
  61.
  62.         likeAnimation = AnimationUtils.loadAnimation(getActivity(),R.anim.private_message_launcher);
  63.         ivLikeVideo.startAnimation(likeAnimation);//开启动画
  64.         likeAnimation.setAnimationListener(new AnimationListener(){
  65.             @Override
  66.             public void onAnimationStart(Animation animation) {}
  67.             @Override
  68.             public void onAnimationRepeat(Animation animation) {}
  69.             @Override
  70.             public void onAnimationEnd(Animation animation) {//监听动画结束
  71.                     if(started)
  72.                         thinkReward();
  73.             }
  74.         });
  75.     }
  76.
  77.     /**
  78.      * 谢谢你的打赏
  79.      */
  80.     private void thinkReward(){
  81.         ivThinkReward.setVisibility(View.VISIBLE);
  82.         thinkAnimation = AnimationUtils.loadAnimation(getActivity(),R.anim.private_message_launcher);
  83.         ivThinkReward.startAnimation(thinkAnimation);
  84.         thinkAnimation.setAnimationListener(new AnimationListener(){
  85.             @Override
  86.             public void onAnimationStart(Animation animation) {}
  87.             @Override
  88.             public void onAnimationRepeat(Animation animation) {}
  89.             @Override
  90.             public void onAnimationEnd(Animation animation) {
  91.                 if(started)
  92.                     watchMovie();
  93.             }
  94.         });
  95.     }
  96.
  97.     /**
  98.      * 一起看个电影呗
  99.      */
  100.     private void watchMovie(){
  101.         ivWatchMovie.setVisibility(View.VISIBLE);
  102.         watchAnimation = AnimationUtils.loadAnimation(getActivity(),R.anim.private_message_launcher);
  103.         ivWatchMovie.startAnimation(watchAnimation);
  104.         watchAnimation.setAnimationListener(new AnimationListener(){
  105.             @Override
  106.             public void onAnimationStart(Animation animation) {}
  107.             @Override
  108.             public void onAnimationRepeat(Animation animation) {}
  109.             @Override
  110.             public void onAnimationEnd(Animation animation) {
  111.                 if(started)
  112.                     thisWeek();
  113.             }
  114.         });
  115.     }
  116.
  117.     /**
  118.      * 好啊 nbsp; 这周末有空
  119.      */
  120.     private void thisWeek(){
  121.         ivThisWeek.setVisibility(View.VISIBLE);
  122.         thisWeekAnimation = AnimationUtils.loadAnimation(getActivity(),R.anim.private_message_launcher);
  123.         ivThisWeek.startAnimation(thisWeekAnimation);
  124.     }
  125. }





8.最后一个引导页  就两个动画  图片的放大跟缩小,其实用xml布局的话一个动画就能搞定,跟私信页面的动画差不多.小伙伴写的代码.这里换了一种方式.代码比较多.



[java] view plaincopy

  1. /**
  2.  * 最后一个
  3.  * @author apple
  4.  */
  5. public class StereoscopicLauncherFragment extends LauncherBaseFragment implements OnClickListener{
  6.     private static final float ZOOM_MAX = 1.3f;
  7.     private static final  float ZOOM_MIN = 1.0f;
  8.
  9.     private ImageView imgView_immediate_experience;
  10.
  11.     @Override
  12.     public View onCreateView(LayoutInflater inflater, ViewGroup container,Bundle savedInstanceState) {
  13.         View rooView=inflater.inflate(R.layout.fragment_stereoscopic_launcher, null);
  14.         imgView_immediate_experience=(ImageView) rooView.findViewById(R.id.imgView_immediate_experience);
  15.         imgView_immediate_experience.setOnClickListener(this);
  16.         return rooView;
  17.     }
  18.
  19.     public void playHeartbeatAnimation(){
  20.             /**
  21.              * 放大动画
  22.              */
  23.         AnimationSet animationSet = new AnimationSet(true);
  24.         animationSet.addAnimation(new ScaleAnimation(ZOOM_MIN, ZOOM_MAX, ZOOM_MIN, ZOOM_MAX, Animation.RELATIVE_TO_SELF, 0.5f, Animation.RELATIVE_TO_SELF,0.5f));
  25.         animationSet.addAnimation(new AlphaAnimation(1.0f, 0.8f));
  26.
  27.         animationSet.setDuration(500);
  28.         animationSet.setInterpolator(new AccelerateInterpolator());
  29.         animationSet.setFillAfter(true);
  30.
  31.         animationSet.setAnimationListener(new AnimationListener() {
  32.             @Override
  33.             public void onAnimationStart(Animation animation) {
  34.             }
  35.
  36.             @Override
  37.             public void onAnimationRepeat(Animation animation) {
  38.             }
  39.
  40.             @Override
  41.             public void onAnimationEnd(Animation animation) {
  42.                     /**
  43.                      * 缩小动画
  44.                      */
  45.                 AnimationSet animationSet = new AnimationSet(true);
  46.                 animationSet.addAnimation(new ScaleAnimation(ZOOM_MAX, ZOOM_MIN, ZOOM_MAX,ZOOM_MIN, Animation.RELATIVE_TO_SELF, 0.5f,Animation.RELATIVE_TO_SELF, 0.5f));
  47.                 animationSet.addAnimation(new AlphaAnimation(0.8f, 1.0f));
  48.                 animationSet.setDuration(600);
  49.                 animationSet.setInterpolator(new DecelerateInterpolator());
  50.                 animationSet.setFillAfter(false);
  51.                  // 实现心跳的View
  52.                 imgView_immediate_experience.startAnimation(animationSet);
  53.             }
  54.         });
  55.          // 实现心跳的View
  56.         imgView_immediate_experience.startAnimation(animationSet);
  57.     }
  58.
  59.     @Override
  60.     public void onClick(View v) {
  61. //      Intent intent = new Intent();
  62. //      intent.setClass(getActivity(),MainActivity.class);
  63. //      startActivity(intent);
  64. //      getActivity().finish();
  65.     }
  66.
  67.     @Override
  68.     public void startAnimation() {
  69.         playHeartbeatAnimation();
  70.     }
  71.
  72.     @Override
  73.     public void stopAnimation() {
  74.
  75.     }
  76. }





最后总结:以上就是三个引导页的核心代码了,还有一些布局文件,动画效果的布局文件我就不一一贴出来的,大家可以去下载我的源码,在这个过程中碰到的几个大的问题说明一下.

1.viewpager切换的时候要结束上个fragment的动画   我是通过boolean变量去控制的

2.背景图片移动的效果    之前自己走了很多弯路,后面在网上找了一个demo拿过来用了.因为大家都有开源精神所以这里省了很多功夫

3.图片放大缩小以前居然不知道一个xml动画布局就能搞定.之前一直想办法用两个动画实现

扫码二维码 获取免费视频学习资料

Python编程学习

查 看2022高级编程视频教程免费获取
