概述

收到读者提问 “使用 Swoole 开发的群聊功能，想知道并发情况，也就是想压测下 QPS，一直未找到方法 ...”本文来分享一波swoole教程

对 swoole_http_server 压测，咱们可以使用 Apache 的 ab 命令。

对 swoole_websocket_server 压测，使用 ab 命令是不能压测的，我从网上一直也没找到合适的方法，看官方提供的代码benchmark/async.php中，使用的异步模块swoole\http\client方法进行压测的，但在 Swoole 4.3 版本就移除了异步模块，让使用Coroutine协程模块。

测试机

Mac 上安装的 Parallels Desktop 虚拟机

系统：Ubuntu 16.04.3 LTS

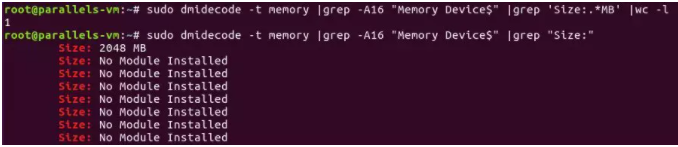

内存：

• 数量：1

• 核数：2

CPU：

• 数量：1

• 大小：2G

Server 代码

<?php



class Server

{

 private $serv;

 public function __construct() {

 $this->serv = new Swoole\WebSocket\Server("0.0.0.0", 9501);

 $this->serv->set([

 'task_worker_num' => 10,

 'enable_coroutine' => true,

 'task_enable_coroutine' => true

 ]);

 $this->serv->on('open', function ($serv, $request) {});

 $this->serv->on('message', function ($serv, $frame) {

 $serv->task($frame->data);

 });

 $this->serv->on('task', function ($serv, $task) {

 foreach ($serv->connections as $fd) {

 $connectionInfo = $serv->connection_info($fd);

 if (isset($connectionInfo['websocket_status']) && intval($connectionInfo['websocket_status']) == 3) {

 $serv->push($fd, $task->data);

 }

 }

 });

 $this->serv->on('finish', function ($serv, $task_id, $data) {});

 $this->serv->on('close', function ($serv, $fd) {});

 $this->serv->start();

 }

}



$server = new Server();

压测脚本

class Test

{

 protected $concurrency; //并发量

 protected $request; //请求量

 protected $requested = 0;

 protected $start_time;



 function __construct()

 {

 $this->concurrency = 100;

 $this->request = 10000;

 }



 protected function webSocket()

 {

 go(function () {

 for ($c = 1; $c <= $this->concurrency; $c++ ) {

 $cli = new \Swoole\Coroutine\Http\Client('127.0.0.1', 9501);

 $cli->set(['websocket_mask' => false]);

 $ret = $cli->upgrade('/');

 if ($ret) {

 $i = $this->request / $this->concurrency;

 while ($i >= 1) {

 $this->push($cli);

 $cli->recv();

 $i--;

 }

 }

 }

 $this->finish();

 });

 }



 protected function push($cli)

 {

 $ret = $cli->push('Hello World');

 if ($ret === true) {

 $this->requested ++ ;

 }

 }



 protected function finish()

 {

 $cost_time = round(microtime(true) - $this->start_time, 4);

 echo "Concurrency:".$this->concurrency.PHP_EOL;

 echo "Request num:".$this->request.PHP_EOL;

 echo "Success num:".$this->requested.PHP_EOL;

 echo "Total time:".$cost_time.PHP_EOL;

 echo "Request per second:" . intval($this->request / $cost_time).PHP_EOL;

 }



 public function run()

 {

 $this->start_time = microtime(true);

 $this->webSocket();

 }

}



$test = new Test();

$test->run();

压测结果

第 1 次：

Concurrency:100

Request num:10000

Success num:10000

Total time:0.846

Request per second:11820



第 2 次：

Concurrency:100

Request num:10000

Success num:10000

Total time:0.9097

Request per second:10992



第 3 次：

Concurrency:100

Request num:10000

Success num:10000

Total time:0.903

Request per second:11074

以上是压测结果，供参考。
